Instrumentation
Cables
In today’s interconnected world, it is becoming increasingly important that connections between electrical instruments, computers and other control equipment are reliable and efficient.

Our range of instrumentation cables offers optimal protection against external electrical noise and interference.
In today’s interconnected world, it is becoming increasingly important that connections between electrical instruments, computers and other control equipment are reliable and efficient.

Our range of instrumentation cables offers optimal protection against external electrical noise and interference.
Applications
Instrumentation cables are versatile and used in diverse applications. They are mainly designed for use in communication and instrumentation applications across various industries such as oil exploration, steel, power generation, cement and chemical plants.

Cables made to specific requirements are used in process controls, network monitoring and the transmission of signals to computers and control systems from remote systems to hazardous areas like in petrochemical, thermal, power, chemical plants, oil refineries, pharmaceutical companies etc.

The cables can also be used to carry low voltages, 4-20 mA frequencies alongside analogue or digital signals. Hence, they are sometimes referred to as Data cables or Signal cables. Instrumentation cables are available in the form of pairs, triad or quad construction as per requirement.


Applications


Instrumentation cables are versatile and used in diverse applications. They are mainly designed for use in communication and instrumentation applications across various industries such as oil exploration, steel, power generation, cement and chemical plants.

Cables made to specific requirements are used in process controls, network monitoring and the transmission of signals to computers and control systems from remote systems to hazardous areas like in petrochemical, thermal, power, chemical plants, oil refineries, pharmaceutical companies etc.

The cables can also be used to carry low voltages, 4-20 mA frequencies alongside analogue or digital signals. Hence, they are sometimes referred to as Data cables or Signal cables. Instrumentation cables are available in the form of pairs, triad or quad construction as per requirement.

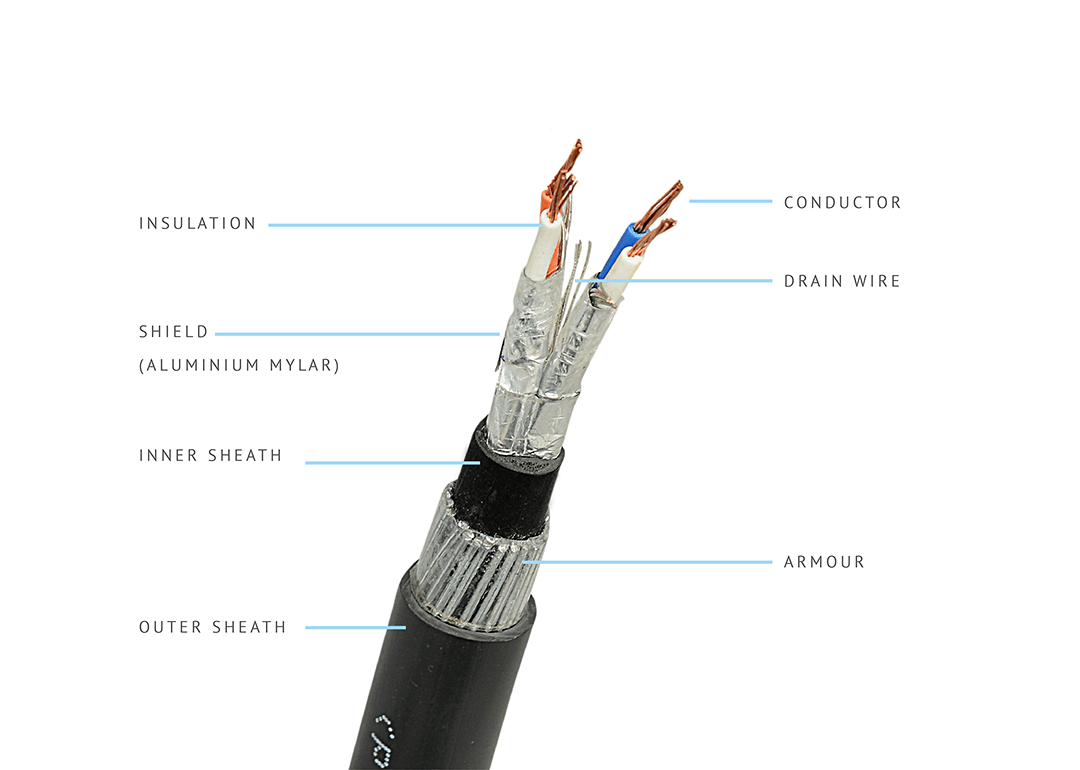

Specifications
Conductors
The cables are manufactured with high conductivity solid/stranded (ATC / ABC) copper conductors as per IS 8130 / BS6360.
Insulation
Our cables make use of PVC, PE / XLPE insulation.
Shielding
Our instrumentation cables are shielded with aluminium Mylar tape or screen.
Outer Sheath
The cables are outer sheathed with PVC & with aditional properties of FR and FRLS. Alternatively, we can also provide ZHFR / LSZH material, where emission of toxic smoke and halogens is prevented in case of a fire.
Armour
GI flat / round armour as per IS 3975 is also provided as per customer requirements.
Other Types of Instrumentation Cables
Single Core
A pair, with twisted cores
A triad, with three twisted cores
A Quad, with four twisted cores
Specifications
Conductors
The cables are manufactured with solid/stranded (ATC / ABC) copper conductors.



Insulation
Our cables make use of PVC, LDPE or XLPE insulation.



Shielding
Our instrumentation cables are shielded with aluminium Mylar tape or screen.



Armour
GI flat / round armour as per IS 3975 is also provided as per customer requirements.



Outer Sheath
The cables are outer sheathed with PVC & with aditional properties of FR and FRLS. Alternatively, we can also provide ZHFR / LSZH material, where emission of toxic smoke and halogens is prevented in case of a fire.
Our instrumentation cables are manufactured in accordance to the national and international code specifications of IS 5608, BS 5308 and IEC189
Find out about our other products
INSTRUMENTATION CABLES COAXIAL CABLES SUBMERSIBLE FLAT CABLES HOUSE WIRING CABLES POWER CABLES
CONTROL CABLES SOLAR CABLES BMS CABLES FLEXIBLE CABLES FIRE SURVIVAL CABLES


Standardization


Our instrumentation cables are manufactured in accordance to the national and international code specifications of IS 5608, BS 5308 and IEC189
